引文信息：
Yong Wang, Hongqi Liu & Xiaoguang Wang. Pseudo Color Fusion of Infrared and Visible Images Based on the Rattlesnake Vision Imaging System. Journal of Bionic Engineering, 2022, 19(1),209–223
Pseudo Color Fusion of Infrared and Visible Images Based on the Rattlesnake Vision Imaging System
Yong Wang, Hongqi Liu & Xiaoguang Wang
1.College of Communication Engineering, Jilin University, Changchun, 130012, China
2.Public Computer Education and Research Center, Jilin University, Changchun, 130012, China
Abstract
Image fusion is a key technology in thefield of digital image processing. In the present study, an effect-based pseudocolor fusion model of infrared and visible images based on the rattlesnakevision imaging system (the rattlesnake bimodal cell fusion mechanism and thevisual receptive field model) is proposed. The innovation point of the proposedmodel lies in the following three features: first, the introduction of a simplemathematical model of the visual receptive field reduce computationalcomplexity; second, the enhanced image is obtained by extracting the commoninformation and unique information of source images, which improves fusionimage quality; and third, the Waxman typical fusion structure is improved forthe pseudo color image fusion model. The performance of the image fusion modelis verified through comparative experiments. In the subjective visualevaluation, we find that the color of the fusion image obtained through theproposed model is natural and can highlight the target and scene details. Inthe objective quantitative evaluation, we observe that the best values on thefour indicators, namely standard deviation, average gradient, entropy, andspatial frequency, accounts for 90%, 100%, 90%, and 100%, respectively,indicating that the fusion image exhibits superior contrast, image clarity,information content, and overall activity. Experimental results reveal that theperformance of the proposed model is superior to that of other models and thusverified the validity and reliability of the model.
Fig. W1 Schematic diagram of the positions of the facial pit organs and eyes

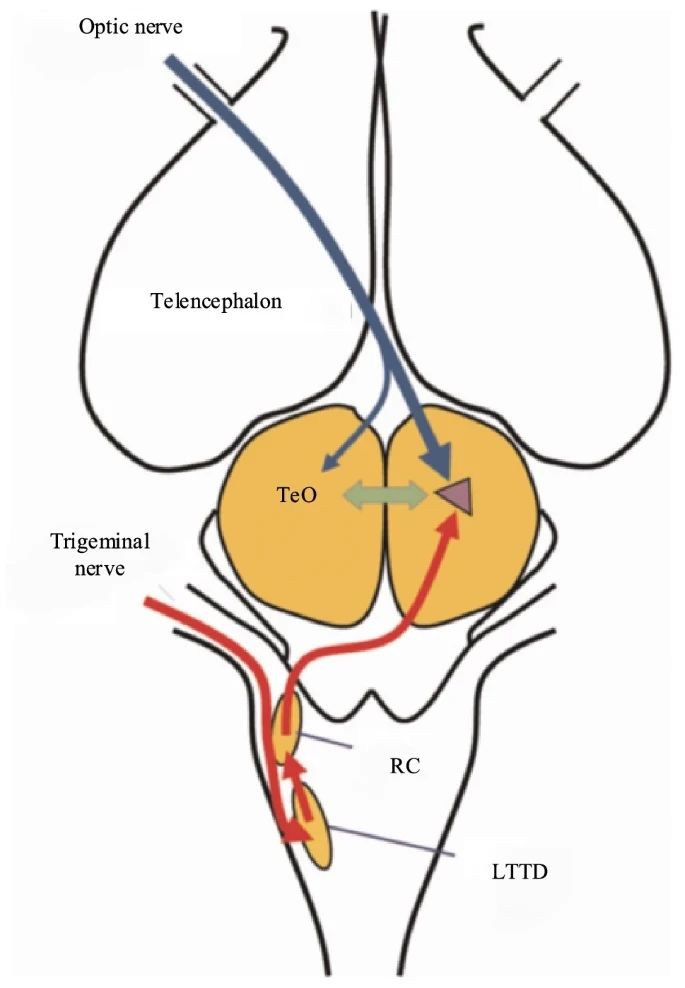

Fig. W2 Schematic diagram of the visual pathway and the infrared pathway of the rattlesnake

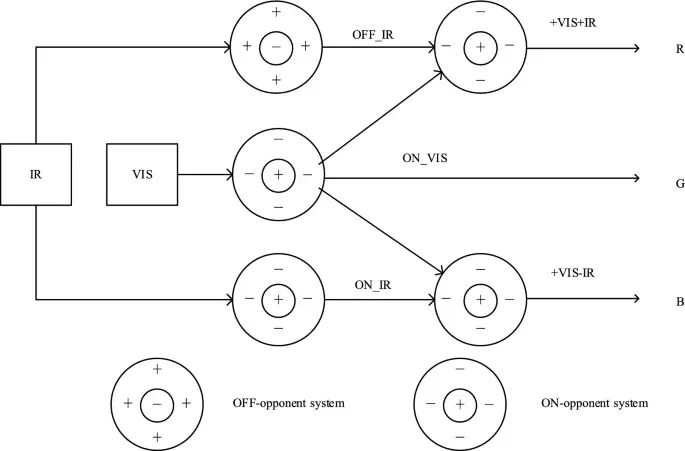

Fig. W3 Schematic diagram of Waxman typical fusion structure

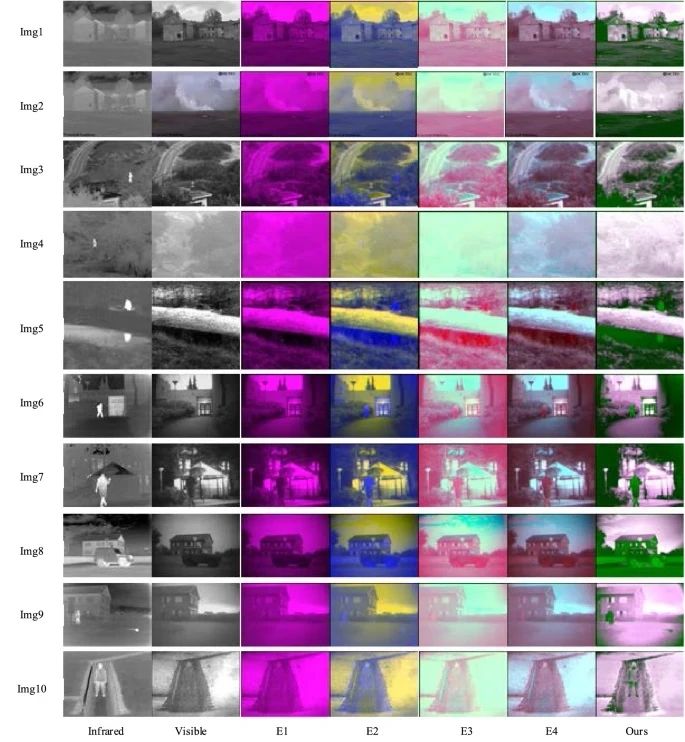

Fig. W4 Qualitative fusion results. From top to bottom, each row is a set of image pair experiment results, from Img1 to Img10. The infrared image, the visible image and the results of E1, E2, E3, E4 and our model are shown in sequence from left to right
以上文章转载于微信公众号国际仿生工程学会，如有侵权，请及时联系我们修改或进行删除。
Information Publisher: Yong Wang, Hongqi Liu & Xiaoguang Wang
Information Release Unit: College of Communication Engineering, Jilin University
Information Source: https://rdcu.be/cF2x7
